An ultrasonic food cutting machine is an industrial or commercial cutting system that uses a blade vibrating at ultrasonic frequency to portion food products with less compression and drag than a conventional stationary blade. The technology is widely associated with bakery and confectionery applications because cakes, cheesecakes, mousse, brownies, nougat, chocolate, frozen desserts, sandwiches, and other products may be soft, sticky, layered, brittle, or temperature-sensitive.
A properly selected machine can support repeatable portion sizes, cleaner presentation, reduced product deformation, and easier integration with manual, semi-automatic, or inline production systems.
An ultrasonic food cutting machine is a food-processing machine in which a cutting blade. The blade then oscillates at a frequency above the normal range of human hearing, while the machine’s mechanical system guides the blade through the product.
Ultrasound in food processing is commonly discussed in the approximate range of 20 to 100 kHz, although the correct operating frequency is determined by the equipment and application rather than by a single universal standard.Some machines are designed for round cakes and wedge portions, while others handle sheet cakes, loaves, rolls, bars, or customized shapes.
Conventional blades can be highly effective, but some foods create specific problems. Soft cakes may compress under pressure. Cream, caramel, chocolate, fillings, and nougat may adhere to the blade. Frozen products may fracture or require substantial force. Multi-layer products may shift, smear, or lose their visual definition. Porous bakery products may generate crumbs, while sticky products can create frequent cleaning interruptions.
Ultrasonic cutting addresses these challenges by reducing the tendency of the blade to drag through the product.
A lower-compression cutting action can help preserve the profile of layered cakes, mousse cakes, cream cakes, brownies, bars, and other delicate products.
Ultrasonic vibration can reduce the mechanical pressure required in suitable applications. The machine still needs the correct blade geometry, support surface, temperature, and travel speed; vibration alone cannot compensate for an unsuitable process design.
Ultrasonic vibration can reduce adhesion in many suitable products, while blade-washing systems can provide an additional cleaning step.

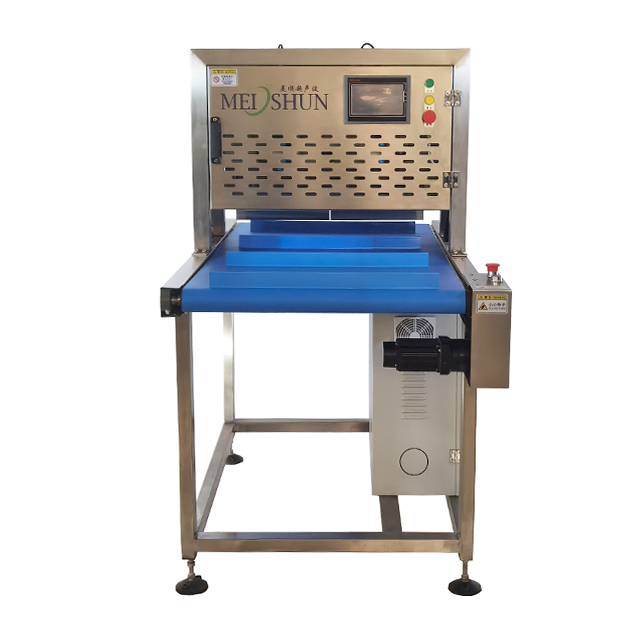

For commercial bakeries, consistency supports packaging, labeling, yield management, customer expectations, and quality control. A machine page for the MEISHUN MSXT4200, for example, describes servo-driven motion and portioning of round products into identical pieces, with a stated range of two to 24 portions.
Ultrasonic food cutting is often considered for products that are soft, sticky, elastic, layered, brittle, chilled, or frozen. The MEISHUN product range lists applications including frozen and ambient cakes, cheesecakes, bread, confectionery, nougat, rolls, and sheet products.
Typical applications include the following categories.
Product category | Common examples | Typical cutting challenge |
Cakes and desserts | Cheesecake, mousse cake, sponge cake, red velvet cake, carrot cake, ice cream cake | Delicate layers, cream adhesion, deformation, temperature sensitivity |
Bakery products | Bread, toast, sheet cake, Swiss roll, filled roll, loaf products | Crumbs, compression, filling drag, irregular slices |
Confectionery | Nougat, chocolate blocks, caramel-based products, bars | Stickiness, inclusions, fracture, residue on the blade |
Frozen foods | Frozen cake, frozen cheesecake, frozen dessert, chilled or frozen bakery products | Hardness, cracking, temperature variation |
Savory products | Pizza, sandwiches, pies, tarts, selected prepared foods | Mixed textures, toppings, fillings, and product movement |
Customers can review the [ultrasonic food cutting machine range], [sheet cake cutter solutions], and [conveying ultrasonic cake cutting line] according to their production format.
Record the product’s dimensions, weight, temperature at cutting, moisture, filling structure, inclusions, coating, hardness, and allowable tolerance. Samples should be tested at the actual production temperature because a chilled mousse cake and a partially thawed mousse cake may require different parameters.
Clarify products per hour, cuts per product, number of lanes, portion patterns, changeover frequency, operator involvement, and integration with conveyors or packaging. A model-specific specification should never be generalized to the entire category.
The trial should evaluate cut-face appearance, portion weight, crumbs, deformation, sticking, temperature change, cleaning time, noise, blade wear, and repeatability. It should also confirm whether the equipment can meet the buyer’s electrical, floor-space, safety, hygiene, and service requirements.
For companies evaluating bakery and confectionery automation, the [MEISHUN ultrasonic food cutting machine range] provides a starting point for comparing frozen cake cutters, round cake cutters, sheet cake cutters, roll slicers, and related equipment.
Q1:What is an ultrasonic food cutting machine used for?
A1:It is used to portion food with a vibrating blade, especially products that are soft, sticky, layered, brittle, chilled, or frozen. Common applications include cakes, cheesecakes, mousse, bread, rolls, brownies, nougat, chocolate products, frozen desserts, pizza, and selected prepared foods.
Q2:Can an ultrasonic cutter cut frozen cakes?
A2:Many ultrasonic food cutters are designed for frozen or chilled products, but the machine must be matched to the product hardness, dimensions, temperature, and required portion pattern. The supplier should conduct a product trial before a purchase decision.
Q3:Does the ultrasonic blade need cleaning?
A3:Yes. Ultrasonic vibration may reduce sticking, and some machines include automatic or programmable blade washing, but the blade and surrounding food-contact areas still require cleaning and inspection. Cleaning frequency depends on the product, recipe, residue, allergen profile, and sanitation program.
Q4:What is the difference between an ultrasonic cake cutter and a conventional cake cutter?
A4:An ultrasonic cake cutter combines blade movement with high-frequency vibration. This can reduce pressure and sticking when cutting suitable cakes and other difficult products. A conventional cutter relies primarily on blade geometry and mechanical force. The best option depends on the product and required throughput.
