MSXT2000 Customized Automatic Production Line of Pastry Triangle Slicing
You are here: Home » Product » Inline Sheet Cake Cutter » MSXT2000 Customized Automatic Production Line of Pastry Triangle Slicing
Product Categories

MSXT2000 Customized Automatic Production Line of Pastry Triangle Slicing


Voltage: 220 V±10%, 50/60 Hz, Single phase
Max Power: 2.5 KW
Blade Width: 300 mm; 100 mm
Number of blade: 4
Product Size: 400*600 mm;
Max Effective cutting height: 80~100 mm
Product Shape: Sheet; Roll
Cutting Shapes: square, rectangle, triangle, slice
Cutting Speed: 60 cuts per minute;
Warranty period: 1 Year ( Lifetime maintenance )
Suitable for: medium to large bakeries cutting more than 350 products per hour.
Customization is available.
Availability:
Quantity:

Product Description

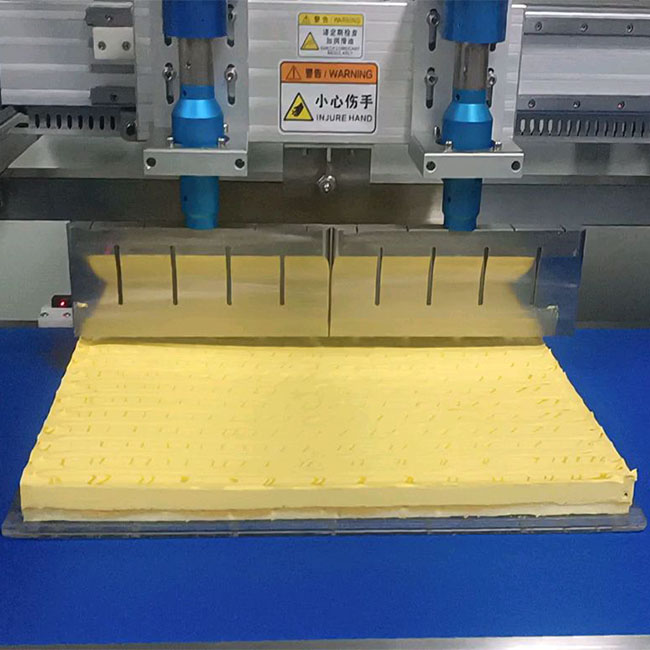

This is an inline ultrasonic cutting machine that can cut sheet cakes into squares rectangles and triangles and can cut roller products into slices.  It can be used as a free-standing machine, manually loading and unloading the products. And can also be integrated into your existing production line to form a fully automatic or semi-automatic production process. Two sets of ultrasonic titanium blades can cut products within the range of 600*400 mm. It is can be customized according to your needs. The conveying speed can also be customized. It is adaptable for medium to large bakeries.


Main Features:

● Can be used independently and combined with packing lines;

● Non sticky blades, no deformation, less crumbles when cutting brittle products;

● Professional cutting surface;

● Accurate and programmable cutting sizes;


Cutting Patterns

Customized automatic production line of pastry slicing 5


Cutting Dispaly

Customized automatic production line of pastry slicing 6

Customer Cases

QQ图片20230803090759


Customized Automatic Production Line of Pastry Slicing Product Parameter


Machine Name

Ultrasonic food cutting machine

Machine Model

HDMS-MSXT2000

Machine Size

2220 L* 1100 W* 1500 H mm

Machine Weight

450 KG

Voltage

220V/50Hz ± 10%

Rated Power

2.5 KW

Knife Width

300 mm; 100 mm

Knife Height

127 mm

Number of blades

4

Blade Material

Titanium alloy

Product Size

Up to 60*40 cm; Height up to 8 cm

Product Type

Frozen, strong, sticky, brittle, soft

Product Shape

Rectangular; Loaf & Roll

Cutting Speed

Up to 60 cuts per minute

Operation Interface

Touch screen

Blade Washing

Manual

Machine Dimensiions (L×W×H)


Customized automatic production line of pastry slicing 7
